Environmental Stress Screening: Basic Steps in Choosing an ESS Profile

Environmental Stress Screening (ESS) is the process of exposing a newly manufactured product to environmental stresses in order to identify and eliminate latent defects introduced during the manufacturing process. It is part of the manufacturing process and is therefore performed on 100% of the items manufactured. After ESS, the remaining product population will have a higher reliability than a similar unscreened population due to the resultant elimination of infant mortality defects. The technique was first developed by the military to reduce the number of defects introduced during the manufacturing process of complex electronic assemblies. The screening process can range from providing a basic check of an electronic system prior to shipment (commonly called burn-in) to the application of much more severe environmental profiles, often involving many temperature and vibration cycles at extreme limits. The benefits of screening depend on the maturity of the manufacturing process, with more mature processes expected to introduce fewer defects. One estimate of the potential benefit is provided by the Telcordia reliability prediction standard (SR-332, Issue 1), which estimates that the failure rate of a system population is four times higher at initial deployment than it will eventually be after one year, as shown in Figure 1, the bathtub curve. This means that if no ESS is performed, it will take up to one year for the population to naturally reach the expected steady state failure rate observed during the useful life period.



V6N1I1
Figure 1 – Bathtub Curve

Typical Stress Levels

There are a number of different methods to determine the ESS profiles. Traditionally, these profiles have been determined by guidelines published in military documents such as DOD-HDBK-344, “Environmental Stress Screening of Electronic Equipment” and/or guidelines published by the Institute of Environmental Sciences and Technology. Table 1 summarizes typical ESS guidance from the USAF Rome Laboratory Reliability Engineer’s Toolkit.

Table 1 Typical ESS Starting Point Guidance

Screen Type, Parameter
and Conditions

Printed
Wiring Assemblies

Equipment Level

Thermal Cycling Screen
Temperature Range
(Minimum)
From -50°C to +75°C From -40°C to +71°C
Temperature Rate of Change (Minimum) 20°C/Minute 15°C/Minute
Temperature Dwell Duration Until Stabilization Until Stabilization
Temperature Cycles 20 to 40 12 to 20
Power On/Equipment Operating No On during heating,
Off during cooling
Equipment Monitoring No Go/no-go performance monitoring
Electrical Testing After Screen Yes (At Ambient Temperature) Yes (At Ambient Temperature)
Random Vibration
Acceleration Level 6 Grms 6 Grms
Frequency Limits 20 – 2000 Hz 20 – 2000 Hz
Axes Stimulated Serially or Concurrently 3 3
Duration of Vibration (Minimum)
o Axes stimulated serially
o Axes stimulated concurrently
10 Minutes/Axis
10 Minutes
10 Minutes/Axis
10 Minutes
 Power On/Off Off On during heating,
Off during cooling
Equipment Monitoring No Go/no-go performance monitoring



Screening Strength

To quantify and refine the above starting point guidance, “screening strength” models have been developed to assess the impact of varying stress levels, screening durations and defect detection approaches. These models were developed by the Air Force (RADC-TR-86-149, Environmental Stress Screening) and are implemented in the Quanterion Automated Reliability Toolkit (QuART), as shown in Figure 2. This tool allows the calculation of relative screening “strengths” at various assembly levels (the system level is highlighted in Figure 2). It can be used to assess and quantify the relative differences between fixed frequency and random vibration screens, different temperature extremes and different fault detection approaches. For example, changing from a simple temperature soak at 75C for 8 hours, as shown in Figure 3, to screening for 20 cycles between -50C and 75C, as shown in Figure 4, increases the strength of the screen from magnitude 1.59 to 9.01 resulting in a 5.67 times increase in screening strength (9.01/1.59 = 5.67).



V6N1I2

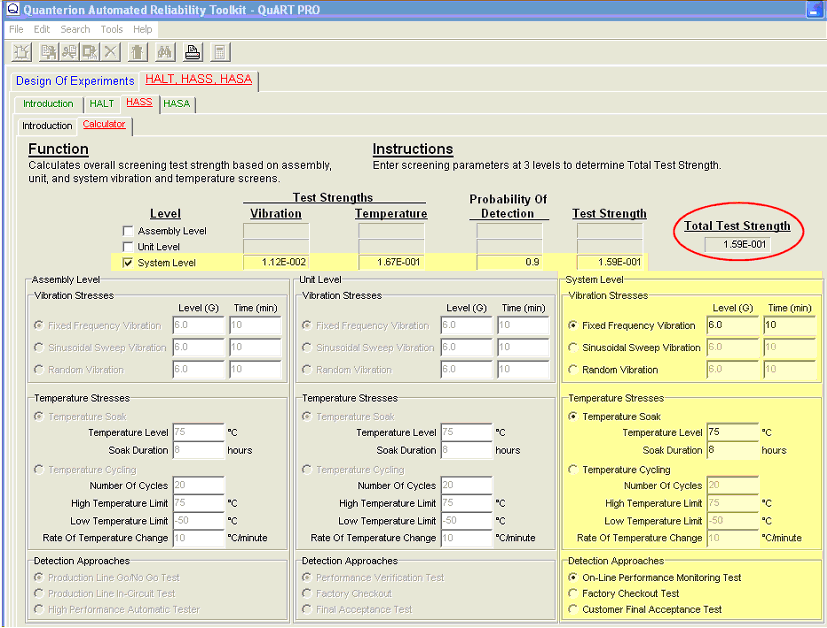

Figure 2 – QuART Test Strength Calculator

V6N1I3

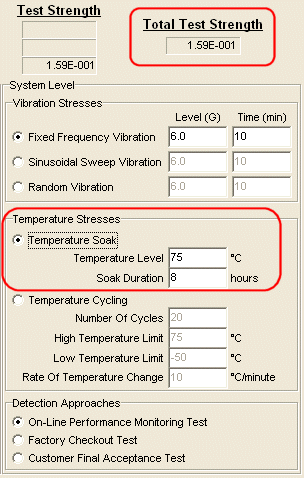

Figure 3 – Temperature Soak Calculator

V6N1I4

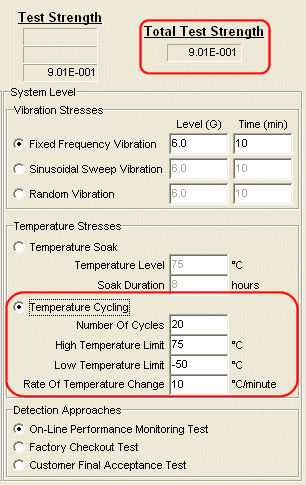

Figure 4 – Temperature Cycling Calculator

HALT / HASS

Another approach to determine screening levels is to conduct a Highly Accelerated Life Test (HALT) to determine operating and destruct margins, as shown in Figure 5. HALT is a process to evaluate a design to identify weaknesses as well as to determine effective stress limits for Highly Accelerated Stress Screening (HASS). HALT evaluates equipment in terms of operating and destruct margins through applying stresses. It is usually performed on a few early units to determine appropriate limits for follow-on HASS, which is performed on 100% of manufactured product. HALT/HASS can be performed at various assembly levels, from circuit board to system.



V6N1I5

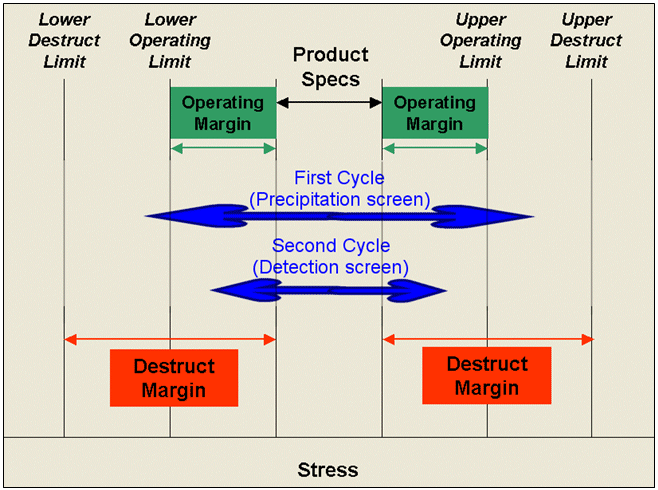

Figure 5 – HALT Stress Thresholds

Component Level Screening

If screening is performed at the component level, knowledge of specific failure modes and accelerating stresses that precipitate these modes can provide valuable insight into the selection of appropriate screens. The QuART software also provides this type of guidance for electronic component failure modes. For example, voltage and temperature are accelerating factors for ceramic capacitor dielectric breakdown, as shown in Figure 6. This failure mode data, developed by US Air Force studies, provides insight into the most appropriate types of stresses for a wide range of electronic components.



V6N1I6

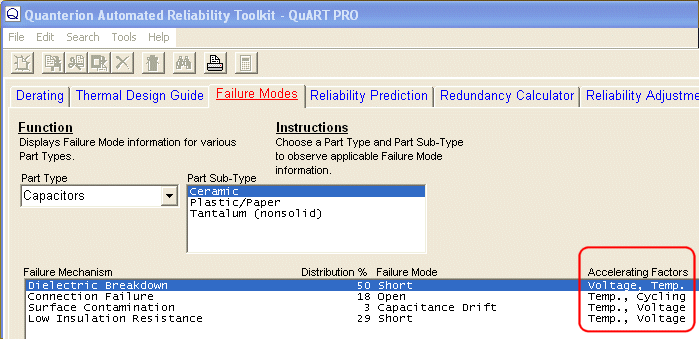

Figure 6 – Ceramic Capacitor Failure Accelerating Factors
