The SuperSMITH® Package by Fulton Findings LLC

The SuperSMITH® Package by Fulton Findings LLC

$1,680.00

SuperSMITH®, developed by Fulton Findings LLC, is the leading software package for Weibull Engineering. This software performs variability analysis for life data or for dimension data. Important uses are for reliability, safety, maintainability, supportability, quality control, product assurance, sizing, and warranty analysis.

Read more about the SuperSMITH® Package below. Note that orders are filled, and technical support is provided, by Fulton Findings LLC (See notes at the end of this page).

The SuperSMITH® Package includes:

    • SuperSMITH Weibull Software Program
    • SuperSMITH Visual Software Program
    • SuperSMITH YBath™ Software Program

Note: All three programs are downloadable and will be sent in an email after purchase.

Quantity Discounts Available

Quantity or Terminals Price per Package
1 $1,680
2 $1,512
3-6 $1,344
7-19 $1,176
20 or more $1,126



Free Software Demo

*Note: This product must be purchased separately from any other Quanterion product.

Consider the related publication titled “The New Weibull Handbook, 5th Ed.”

SKU: supersmith Category:

Product Description



The SuperSMITH® Package


Complete Home Study Guide and Professional Tool
for Weibull Engineering Analysis

by Fulton Findings LLC

quote

graph

$ 960.00 USD List Price for One Package
Quantity Discounts Available*

The SuperSMITH® Package includes (the software works on Windows or Windows simulators):
2graph

    • SuperSMITH Weibull Software Program
    • SuperSMITH Visual Software Program
    • SuperSMITH YBath™ Software Program

Weibull technology is the expert’s choice for variability modeling and evaluation of reliability, quality, safety, maintainability, sizing, test requirement, optimum replacement for minimized cost, warranty estimation, design comparison, and design margin. This package is used by hundreds of organizations, governmental and commercial, around the world to perform Weibull Engineering analysis. Examples of past application:

  1. Aerospace . . . for turbine wheels, blades, compressors, rivets, spars, airfoils, avionics, flight controls, heat transfer components
  2. Automotive . . . for roller bearings, flywheels, oil pumps, turbo-chargers, transmissions, brakes, batteries, dashboards, regulators
  3. Chemical and Petro-Chemical . . . for pumps, flow valves, piping, tankage, boilers, cracking towers, safety valves, seals
  4. Energy Generation . . . for nuclear heat-exchangers, rods, power turbines, transformers, switches, capacitors
  5. Food Processing . . . for conveyor systems, rollers, electronic equipment, mixing valves, packaging, taste comparison
  6. Ground Support and Marine . . . APU’s, wiring, pneumatic actuators, wheels, gearing, journal bearings, oil life capacity, gaskets, filters
  7. Medical and Medicine . . . for hospital beds, pace-makers, syringes, needles, operating-room lighting, drug effectivity
  8. Rail transport . . . for ties, rails, power electronics, couplings, chassis suspension, motors, fasteners
  9. Services . . . for queing line wait time, turnaround time, time between request, billing delay, customer satisfaction, insurance

Item Description:

Note: All three programs are downloadable and will be sent in an email along with the PDF.

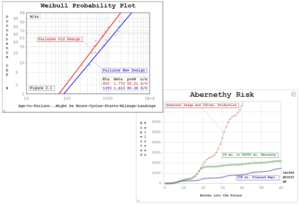

      • SuperSMITH Weibull software: This program provides Weibull plotting solution for up to 12 data sets each with up to 32,000 individual data entries on the same plot or on separate plots, but not limited to 32,000 input values in a single set, as there is a frequency number with each data entry. Billions of data values have been analyzed for a single solution in this way. Solutions include graphical and non-graphical. There is capability for failure forecasting with or without part renewal, optimum replacement analysis for minimized cost, test requirements planning, accelerating test data modeling, and process reliability. The Weibull program includes scaling for other models besides Weibull such as Exponential, Rayleigh, Normal, Lognormal, Gumbel Lower, Gumbel Upper, and Weibayes.
      • SuperSMITH Visual software: This is a companion program to the Weibull software for general line and point “XY” plots. Auxiliary Weibull-linked plots are probability density function (PDF), or hazard distribution function (HDF), or reliability distribution function (RDF), or aggregate cumulative hazard (ACH), or failure forecasting, or optimum replacement. Visual has unique display of data points on these auxiliary plots not found elsewhere. There is semi-log, and log-log, and Arrhenius scaling capability. Visual also provides Crow-AMSAA trend plot analysis per IEC 61710.
      • SuperSMITH YBath™ software: This is another companion program to the Weibull software for advanced mixture analysis and plotting, with similar user-interface as the Weibull and Visual programs. One data set can be modeled with a 4-parameter, or 5-parameter, or 7-parameter solution on Weibull scaling. Batch proportion (subpopulation) represents an additional parameter within the 5 or 7 parameter solution.

Quantity Discounts Available

Quantity or Terminals Price per Package
1 $1,680
2 $1,512
3-6 $1,344
7-19 $1,176
20 or more $1,126



Please Note:

    1. ALL QUESTIONS ABOUT ORDER STATUS MUST BE DIRECTED TO FULTON FINDINGS. ALL INSTALLATION AND TECHNICAL SUPPORT FOR THE SUPERSMITH PACKAGE WILL BE PROVIDED BY FULTON FINDINGS LLC. THE SUPPORT RESPONSE IS USUALLY FROM ONE TO TWO BUSINESS DAYS AFTER RECEIPT OF REQUEST. FOR PHONE SUPPORT, PLEASE CALL EITHER 310-548-6358 (US) OR 989-780-5088 (US) BETWEEN THE HOURS OF 10:00AM to 5:00PM EASTERN TIME. USE EITHER WES33@PACBELL.NET OR CTWEB@ATT.NET FOR EMAIL SUPPORT. FOR POSTAL MAIL, THE ADDRESS IS: FULTON FINDINGS, P.O. BOX 6517, SAN PEDRO, CA 90734 (USA)
    2. REQUESTS FOR PRODUCT RETURNS MUST BE DIRECTED TO FULTON FINDINGS LLC.
    3. NOTE THAT THE VERSIONS OF THIS PRODUCT ARE UPDATED FREQUENTLY. FULTON FINDINGS LLC WILL FULFILL ORDERS USING THE LATEST PRODUCT CONFIGURATION. PLEASE CONTACT FULTON FINDINGS LLC TO FIND OUT THE LATEST CONFIGURATION, OR TO UPDATE A PREVIOUSLY PURCHASED COPY OF THIS PRODUCT.
    4. STANDARD SHIPPING AND HANDLING WITHIN THE U.S., CANADA AND MEXICO IS $20.00 EACH INDIVIDUAL PROGRAM OR HANDBOOK. THE STANDARD OVERSEAS SHIPPING AND HANDLING IS $40.00 FOR EACH INDIVIDUAL PROGRAM OR HANDBOOK. STANDARD U.S. DELIVERY IS 2-DAY AND STANDARD OVERSEAS DELIVERY FOR MANY LOCATIONS IS 3-DAY. EXPRESS SHIPPING WITHIN THE U.S. IS AVAILABLE AT AN ADDITIONAL $20.00 EACH INDIVIDUAL PROGRAM OR HANDBOOK.
